Wavin UltraRib is a fully socketed system of pipe and fittings which combines secure jointing with ease of installation. For foul and surface water drainage for adoptable and non adoptable situations requiring a high stiffness classification

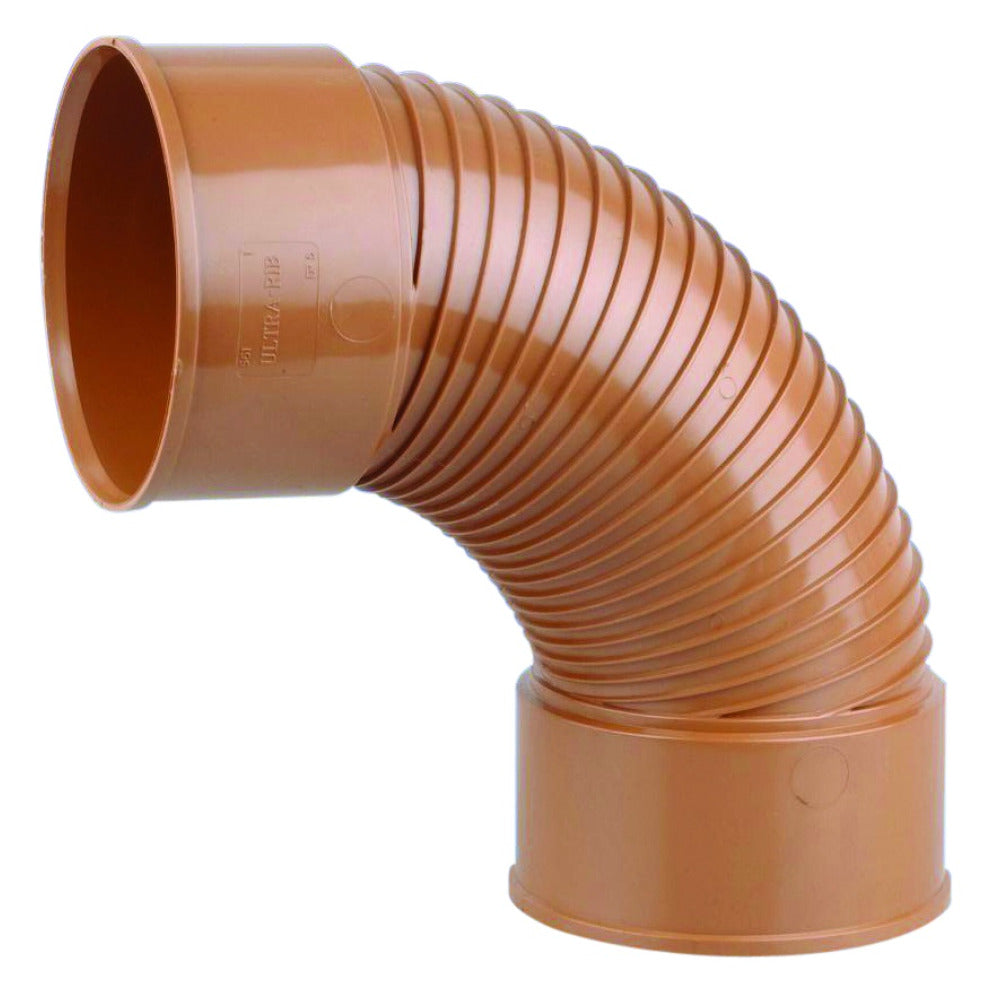

- Short radius 87.5° bend with push-fit ring seal sockets at both ends
- The smooth interchange between pipe and fittings gives improved hydraulic flow
- Wavin UltraRib joints are made be placing the sealing ring between the second and third external reinforcing ribs nearest the spigot end of the pipe, which is then inserted into a socket
| SPECIFICATION | |
| Brand | Wavin |
| Sub Brand | Wavin UltraRib |
| Unit Length of Piece (mm) | 510mm |
| Unit Width of Piece (mm) | 180mm |
| Unit Height of Piece (mm) | 377mm |
| Unit Weight of Piece (Kg) | 1.402kg |
| Connection Type | Push-fit |
| Main Material | PVC |
| Nominal Inner Diameter | 150mm |
| Packaged Product Dimensions Weight (kg) | 1.402kg |
| Ring Stiffness Class | SN8 |
| Warranty | 12 months |
