Wavin SquareLine is a 100mm (4\) square section gutter system with 61mm square pipe - suitable for a maximum roof area of 178m² (with one downpipe)

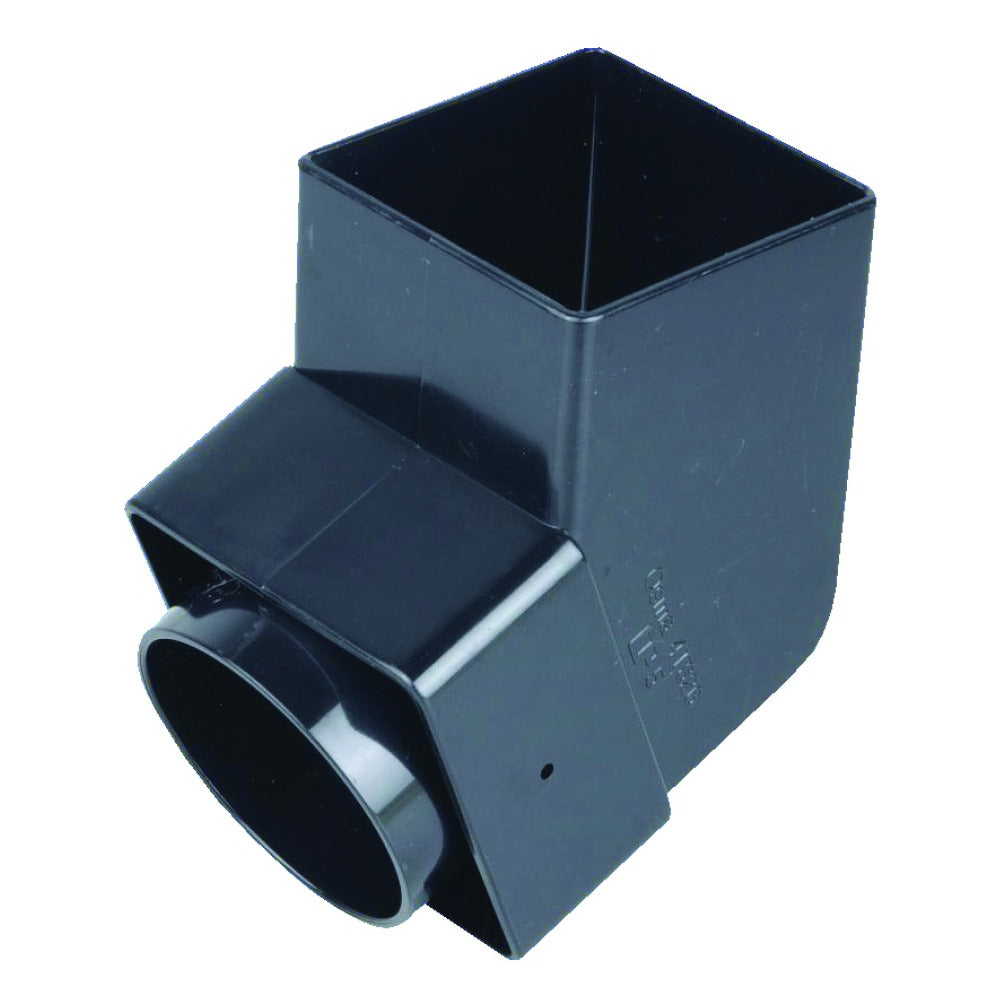

- 67.5° offset bend - spigot
- For use as a top or bottom bend
- Minimum achievable offset 73mm
| SPECIFICATION | |
| Brand | Wavin |
| Sub Brand | Rainwater SquareLine |
| Unit Length of Piece (mm) | 130mm |
| Unit Width of Piece (mm) | 65mm |
| Unit Height of Piece (mm) | 110mm |
| Unit Weight of Piece (Kg) | 0.102kg |
| Connection Type | Push-fit |
| Material | Kitemarked |
| Packaged Product Dimensions Depth (mm) | 200mm |
| Packaged Product Dimensions Weight (kg) | 160kg |
| Packaged Product Dimensions Width (mm) | 340mm |
| Size | 61mm |
| Warranty | 12 months |
