Thin-R Cav Wall Board TG 1200x450x60

SUPPLIER CODE

PRODUCT CODE

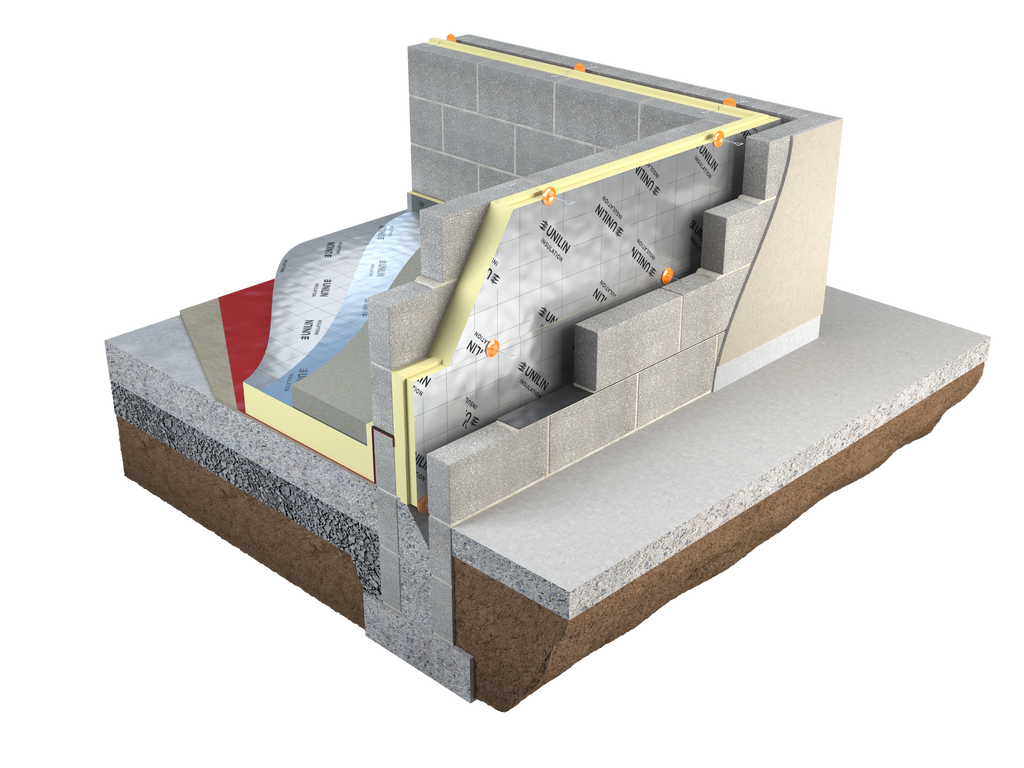

Thin-R Partial Fill Cavity Wall (T&G) builds to a system thanks to its engineered tongue and grooved joints and pre-formed corners, ensuring insulation continuity and minimisation of thermal Bridging. Cavity Wall (T&G) for use in traditional masonry walls, builds to the highest thermal standards whilst maintaining a residual cavity, offering protection from wind-driven rain.

Description

Specification	Value
Supplier Product Code	400077470
Brand	Xtratherm
Sub Brand	XT/CW
Primary Colour	Neutral
Product Size	1200mm x 450mm x 60mm
Unit Weight of Piece (Kg)	1.1232kg
Coverage Spec	0.54
Fire Resistance Rating	NPD
Material	PIR
POS Selling Point #1	Engineered tongue and grooved joints
POS Selling Point #2	Features low emissivity foil facings
POS Selling Point #3	Maintains a residual cavity against rain
Thermal Conductivity	0.022
Thermal Resistance (R-Value)	2.7
Thickness	60
Usage	Insulation
Safety Data Sheet	Please note that this item has additional safety or regulatory datasheets available. The product may have possible health and safety hazards covered in these documents. Refer to the container for full information and always follow the instructions.
Declaration of Performance (DoP)	Please note that this item has additional safety or regulatory datasheets available. The product may have possible health and safety hazards covered in these documents. Refer to the container for full information and always follow the instructions.
